训练一个分类器¶

Created On: Mar 24, 2017 | Last Updated: Dec 20, 2024 | Last Verified: Not Verified

就是这样。您已经看到了如何定义神经网络、计算损失并更新网络权重。

现在您可能会想到，

数据怎么办？¶

通常，当您需要处理图像、文本、音频或视频数据时，可以使用标准的 Python 包将数据加载到一个 numpy 数组中。然后可以将此数组转换为 torch.*Tensor。

对于图像，可以使用 Pillow、OpenCV 等包
对于音频，可以使用 scipy 和 librosa
对于文本，可以使用原生 Python、基于 Cython 的加载器，或者 NLTK 和 SpaCy

特别是针对视觉任务，我们创建了一个名为 torchvision 的包，它具有常用数据集（例如 ImageNet、CIFAR10、MNIST 等）的数据加载器和图像数据变换工具，即 torchvision.datasets 和 torch.utils.data.DataLoader。

这极大地提供了便利，避免了编写样板代码。

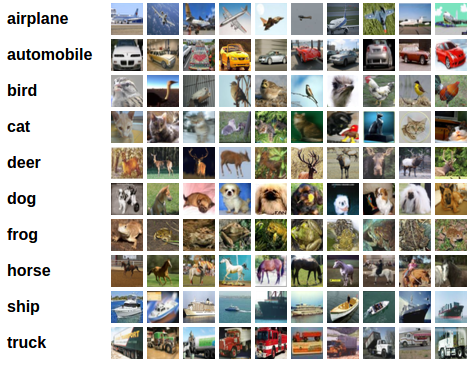

在本教程中，我们将使用 CIFAR10 数据集。它包含以下类别：’飞机’、’汽车’、’鸟’、’猫’、’鹿’、’狗’、’青蛙’、’马’、’船’、’卡车’。CIFAR-10 的图像大小为 3x32x32，即 32x32 像素的三通道彩色图像。

cifar10¶

训练一个图像分类器¶

我们将按以下步骤进行：

使用 torchvision 加载并标准化 CIFAR10 的训练和测试数据集
定义一个卷积神经网络
定义一个损失函数
在训练数据上训练网络
在测试数据上测试网络

1. 加载并标准化 CIFAR10¶

使用 torchvision，加载 CIFAR10 非常简单。

import torch
import torchvision
import torchvision.transforms as transforms

torchvision 数据集的输出是范围为 [0, 1] 的 PILImage 图像。我们将其转换为范围为 [-1, 1] 的标准化 Tensor。

备注

如果在运行 Windows 时出现 BrokenPipeError，尝试将 torch.utils.data.DataLoader() 的 num_worker 设置为 0。

transform = transforms.Compose(
    [transforms.ToTensor(),
     transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])

batch_size = 4

trainset = torchvision.datasets.CIFAR10(root='./data', train=True,
                                        download=True, transform=transform)
trainloader = torch.utils.data.DataLoader(trainset, batch_size=batch_size,
                                          shuffle=True, num_workers=2)

testset = torchvision.datasets.CIFAR10(root='./data', train=False,
                                       download=True, transform=transform)
testloader = torch.utils.data.DataLoader(testset, batch_size=batch_size,
                                         shuffle=False, num_workers=2)

classes = ('plane', 'car', 'bird', 'cat',
           'deer', 'dog', 'frog', 'horse', 'ship', 'truck')

  0%|          | 0.00/170M [00:00<?, ?B/s]
  0%|          | 32.8k/170M [00:00<39:10, 72.5kB/s]
  0%|          | 98.3k/170M [00:00<17:28, 162kB/s]
  0%|          | 197k/170M [00:00<10:47, 263kB/s]
  0%|          | 360k/170M [00:01<06:42, 422kB/s]
  0%|          | 721k/170M [00:01<03:30, 808kB/s]
  1%|          | 1.41M/170M [00:01<01:51, 1.52MB/s]
  2%|1         | 2.75M/170M [00:01<00:49, 3.37MB/s]
  2%|1         | 3.21M/170M [00:01<00:46, 3.57MB/s]
  3%|3         | 5.47M/170M [00:02<00:27, 6.00MB/s]
  5%|5         | 8.59M/170M [00:02<00:15, 10.3MB/s]
  6%|5         | 9.80M/170M [00:02<00:15, 10.3MB/s]
  7%|6         | 11.7M/170M [00:02<00:13, 11.9MB/s]
  8%|7         | 13.0M/170M [00:02<00:14, 11.0MB/s]
  9%|8         | 14.8M/170M [00:02<00:14, 10.6MB/s]
 10%|#         | 17.1M/170M [00:02<00:11, 13.3MB/s]
 11%|#         | 18.6M/170M [00:03<00:13, 11.6MB/s]
 12%|#2        | 21.1M/170M [00:03<00:12, 12.2MB/s]
 13%|#3        | 22.9M/170M [00:03<00:11, 13.3MB/s]
 14%|#4        | 24.3M/170M [00:03<00:12, 11.5MB/s]
 16%|#5        | 27.1M/170M [00:03<00:09, 15.1MB/s]
 17%|#6        | 28.8M/170M [00:03<00:11, 12.8MB/s]
 18%|#7        | 30.3M/170M [00:03<00:12, 11.3MB/s]
 19%|#9        | 33.0M/170M [00:04<00:11, 11.5MB/s]
 21%|##1       | 35.9M/170M [00:04<00:11, 11.8MB/s]
 23%|##2       | 39.0M/170M [00:04<00:10, 12.4MB/s]
 25%|##4       | 42.2M/170M [00:04<00:10, 12.8MB/s]
 27%|##6       | 45.3M/170M [00:05<00:09, 13.1MB/s]
 28%|##8       | 48.4M/170M [00:05<00:09, 13.2MB/s]
 30%|###       | 51.5M/170M [00:05<00:08, 13.4MB/s]
 32%|###2      | 54.7M/170M [00:05<00:08, 13.6MB/s]
 34%|###3      | 57.8M/170M [00:06<00:08, 13.6MB/s]
 36%|###5      | 60.9M/170M [00:06<00:08, 13.6MB/s]
 38%|###7      | 64.1M/170M [00:06<00:07, 13.6MB/s]
 39%|###9      | 67.2M/170M [00:06<00:07, 13.5MB/s]
 41%|####1     | 70.3M/170M [00:06<00:07, 13.8MB/s]
 42%|####2     | 72.4M/170M [00:07<00:06, 14.9MB/s]
 43%|####3     | 74.0M/170M [00:07<00:07, 13.2MB/s]
 45%|####4     | 76.5M/170M [00:07<00:06, 13.5MB/s]
 46%|####5     | 78.2M/170M [00:07<00:06, 14.1MB/s]
 47%|####6     | 79.7M/170M [00:07<00:06, 13.1MB/s]
 48%|####8     | 82.1M/170M [00:07<00:05, 15.5MB/s]
 49%|####9     | 83.8M/170M [00:07<00:06, 13.3MB/s]
 50%|#####     | 85.9M/170M [00:08<00:06, 13.2MB/s]
 51%|#####1    | 87.6M/170M [00:08<00:05, 14.0MB/s]
 52%|#####2    | 89.1M/170M [00:08<00:06, 12.6MB/s]
 54%|#####3    | 91.5M/170M [00:08<00:05, 15.2MB/s]
 55%|#####4    | 93.2M/170M [00:08<00:05, 13.1MB/s]
 56%|#####5    | 95.2M/170M [00:08<00:05, 13.2MB/s]
 57%|#####6    | 96.9M/170M [00:08<00:05, 14.1MB/s]
 58%|#####7    | 98.4M/170M [00:08<00:05, 12.8MB/s]
 59%|#####8    | 100M/170M [00:09<00:05, 13.9MB/s]
 60%|#####9    | 102M/170M [00:09<00:05, 12.4MB/s]
 61%|######1   | 104M/170M [00:09<00:04, 15.6MB/s]
 62%|######2   | 106M/170M [00:09<00:04, 13.3MB/s]
 63%|######3   | 108M/170M [00:09<00:04, 13.0MB/s]
 64%|######4   | 109M/170M [00:09<00:04, 13.9MB/s]
 65%|######5   | 111M/170M [00:09<00:04, 12.5MB/s]
 66%|######6   | 113M/170M [00:10<00:04, 13.7MB/s]
 67%|######6   | 114M/170M [00:10<00:04, 12.3MB/s]
 69%|######8   | 117M/170M [00:10<00:03, 14.2MB/s]
 69%|######9   | 118M/170M [00:10<00:03, 13.8MB/s]
 70%|#######   | 120M/170M [00:10<00:03, 13.6MB/s]
 71%|#######1  | 121M/170M [00:10<00:03, 13.4MB/s]
 72%|#######2  | 123M/170M [00:10<00:03, 14.0MB/s]
 73%|#######3  | 125M/170M [00:10<00:03, 13.2MB/s]
 74%|#######4  | 126M/170M [00:11<00:03, 13.7MB/s]
 75%|#######4  | 128M/170M [00:11<00:03, 13.2MB/s]
 76%|#######5  | 129M/170M [00:11<00:02, 14.2MB/s]
 77%|#######6  | 131M/170M [00:11<00:03, 13.1MB/s]
 78%|#######7  | 132M/170M [00:11<00:02, 13.8MB/s]
 79%|#######8  | 134M/170M [00:11<00:02, 13.1MB/s]
 80%|#######9  | 136M/170M [00:11<00:02, 14.0MB/s]
 80%|########  | 137M/170M [00:11<00:02, 13.1MB/s]
 81%|########1 | 139M/170M [00:11<00:02, 14.0MB/s]
 82%|########2 | 140M/170M [00:12<00:02, 13.1MB/s]
 83%|########3 | 142M/170M [00:12<00:02, 14.0MB/s]
 84%|########4 | 143M/170M [00:12<00:02, 13.1MB/s]
 85%|########5 | 145M/170M [00:12<00:01, 14.1MB/s]
 86%|########5 | 147M/170M [00:12<00:01, 13.1MB/s]
 87%|########6 | 148M/170M [00:12<00:01, 14.1MB/s]
 88%|########7 | 150M/170M [00:12<00:01, 13.1MB/s]
 89%|########8 | 151M/170M [00:12<00:01, 13.9MB/s]
 90%|########9 | 153M/170M [00:13<00:01, 13.1MB/s]
 91%|######### | 154M/170M [00:13<00:01, 14.0MB/s]
 91%|#########1| 156M/170M [00:13<00:01, 13.1MB/s]
 92%|#########2| 158M/170M [00:13<00:00, 14.0MB/s]
 93%|#########3| 159M/170M [00:13<00:00, 13.1MB/s]
 94%|#########4| 161M/170M [00:13<00:00, 14.1MB/s]
 95%|#########5| 162M/170M [00:13<00:00, 13.1MB/s]
 96%|#########6| 164M/170M [00:13<00:00, 13.9MB/s]
 97%|#########6| 165M/170M [00:13<00:00, 13.1MB/s]
 98%|#########7| 167M/170M [00:14<00:00, 14.0MB/s]
 99%|#########8| 168M/170M [00:14<00:00, 13.0MB/s]
100%|#########9| 170M/170M [00:14<00:00, 13.8MB/s]
100%|##########| 170M/170M [00:14<00:00, 11.9MB/s]

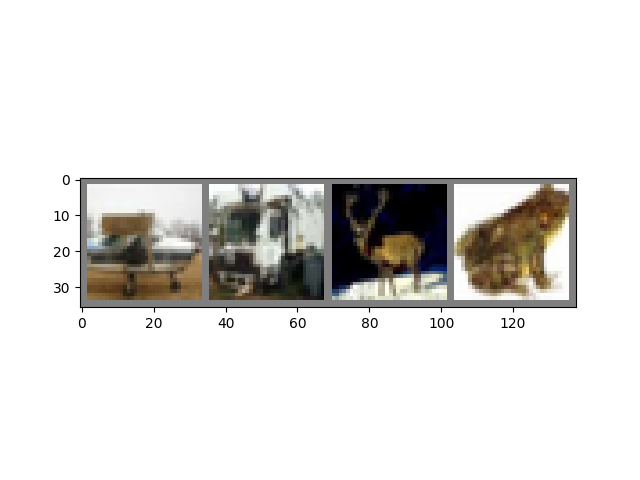

让我们展示一些训练图像，以增加趣味性。

import matplotlib.pyplot as plt
import numpy as np

# functions to show an image


def imshow(img):
    img = img / 2 + 0.5     # unnormalize
    npimg = img.numpy()
    plt.imshow(np.transpose(npimg, (1, 2, 0)))
    plt.show()


# get some random training images
dataiter = iter(trainloader)
images, labels = next(dataiter)

# show images
imshow(torchvision.utils.make_grid(images))
# print labels
print(' '.join(f'{classes[labels[j]]:5s}' for j in range(batch_size)))

plane truck deer  frog

2. 定义一个卷积神经网络¶

复制之前神经网络部分的神经网络，并将其修改为接受三通道图像（而不是定义为一通道图像）。

import torch.nn as nn
import torch.nn.functional as F


class Net(nn.Module):
    def __init__(self):
        super().__init__()
        self.conv1 = nn.Conv2d(3, 6, 5)
        self.pool = nn.MaxPool2d(2, 2)
        self.conv2 = nn.Conv2d(6, 16, 5)
        self.fc1 = nn.Linear(16 * 5 * 5, 120)
        self.fc2 = nn.Linear(120, 84)
        self.fc3 = nn.Linear(84, 10)

    def forward(self, x):
        x = self.pool(F.relu(self.conv1(x)))
        x = self.pool(F.relu(self.conv2(x)))
        x = torch.flatten(x, 1) # flatten all dimensions except batch
        x = F.relu(self.fc1(x))
        x = F.relu(self.fc2(x))
        x = self.fc3(x)
        return x


net = Net()

3. 定义一个损失函数和优化器¶

我们使用分类交叉熵损失和带动量的 SGD。

import torch.optim as optim

criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(net.parameters(), lr=0.001, momentum=0.9)

4. 训练网络¶

这时事情开始变得有趣。我们只需要遍历数据迭代器，将输入提供给网络并进行优化。

for epoch in range(2):  # loop over the dataset multiple times

    running_loss = 0.0
    for i, data in enumerate(trainloader, 0):
        # get the inputs; data is a list of [inputs, labels]
        inputs, labels = data

        # zero the parameter gradients
        optimizer.zero_grad()

        # forward + backward + optimize
        outputs = net(inputs)
        loss = criterion(outputs, labels)
        loss.backward()
        optimizer.step()

        # print statistics
        running_loss += loss.item()
        if i % 2000 == 1999:    # print every 2000 mini-batches
            print(f'[{epoch + 1}, {i + 1:5d}] loss: {running_loss / 2000:.3f}')
            running_loss = 0.0

print('Finished Training')

[1,  2000] loss: 2.175
[1,  4000] loss: 1.840
[1,  6000] loss: 1.680
[1,  8000] loss: 1.613
[1, 10000] loss: 1.530
[1, 12000] loss: 1.494
[2,  2000] loss: 1.403
[2,  4000] loss: 1.391
[2,  6000] loss: 1.348
[2,  8000] loss: 1.307
[2, 10000] loss: 1.296
[2, 12000] loss: 1.279
Finished Training

快速保存我们的训练模型：

PATH = './cifar_net.pth'
torch.save(net.state_dict(), PATH)

更多关于保存 PyTorch 模型的细节请参阅这里。

5. 在测试数据上测试网络¶

我们已经对训练数据集进行了两次训练。但我们需要检查网络是否真的学到了东西。

我们将通过预测神经网络输出的类标签，并将其与真实标签进行比较来检查。如果预测正确，我们将样本添加到正确预测列表中。

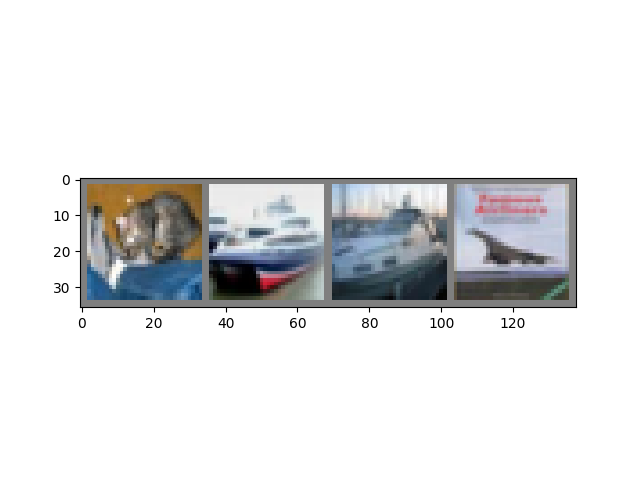

好的，第一步。让我们显示测试集中的一张图片以熟悉它。

dataiter = iter(testloader)
images, labels = next(dataiter)

# print images
imshow(torchvision.utils.make_grid(images))
print('GroundTruth: ', ' '.join(f'{classes[labels[j]]:5s}' for j in range(4)))

GroundTruth:  cat   ship  ship  plane

接下来，让我们加载我们保存的模型（注意：这里保存和重新加载模型并不是必须的，我们仅仅是为了展示如何操作）。

net = Net()
net.load_state_dict(torch.load(PATH, weights_only=True))

<All keys matched successfully>

好的，现在让我们看看神经网络对上面的示例的看法：

outputs = net(images)

输出是对 10 个类别的能量值。某类别的能量值越高，网络越认为该图像属于该类别。所以，让我们获取最高能量的索引：

_, predicted = torch.max(outputs, 1)

print('Predicted: ', ' '.join(f'{classes[predicted[j]]:5s}'
                              for j in range(4)))

Predicted:  cat   car   ship  plane

结果看起来不错。

让我们看看网络在整个数据集上的表现。

correct = 0
total = 0
# since we're not training, we don't need to calculate the gradients for our outputs
with torch.no_grad():
    for data in testloader:
        images, labels = data
        # calculate outputs by running images through the network
        outputs = net(images)
        # the class with the highest energy is what we choose as prediction
        _, predicted = torch.max(outputs, 1)
        total += labels.size(0)
        correct += (predicted == labels).sum().item()

print(f'Accuracy of the network on the 10000 test images: {100 * correct // total} %')

Accuracy of the network on the 10000 test images: 54 %

这看起来比随机选择（10% 的准确率）要好得多。看起来网络确实学到了一些东西。

嗯，有哪些分类表现良好，而有哪些分类表现不佳：

# prepare to count predictions for each class
correct_pred = {classname: 0 for classname in classes}
total_pred = {classname: 0 for classname in classes}

# again no gradients needed
with torch.no_grad():
    for data in testloader:
        images, labels = data
        outputs = net(images)
        _, predictions = torch.max(outputs, 1)
        # collect the correct predictions for each class
        for label, prediction in zip(labels, predictions):
            if label == prediction:
                correct_pred[classes[label]] += 1
            total_pred[classes[label]] += 1


# print accuracy for each class
for classname, correct_count in correct_pred.items():
    accuracy = 100 * float(correct_count) / total_pred[classname]
    print(f'Accuracy for class: {classname:5s} is {accuracy:.1f} %')

Accuracy for class: plane is 62.4 %
Accuracy for class: car   is 71.4 %
Accuracy for class: bird  is 45.8 %
Accuracy for class: cat   is 50.9 %
Accuracy for class: deer  is 39.3 %
Accuracy for class: dog   is 43.6 %
Accuracy for class: frog  is 53.9 %
Accuracy for class: horse is 62.6 %
Accuracy for class: ship  is 54.1 %
Accuracy for class: truck is 63.5 %

好的，那接下来呢？

我们如何在 GPU 上运行这些神经网络？

在 GPU 上训练¶

就像将 Tensor 转移到 GPU 一样，可以将神经网络转移到 GPU。

首先定义设备为第一个可见的 CUDA 设备（如果我们有 CUDA 可用的话）：

device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')

# Assuming that we are on a CUDA machine, this should print a CUDA device:

print(device)

cuda:0

本节其余部分假设 device 是一个 CUDA 设备。

然后这些方法会递归地遍历所有模块并将其参数和缓冲区转换为 CUDA 张量：

net.to(device)

请记住，在每一步中还需要将输入和目标发送到 GPU：

inputs, labels = data[0].to(device), data[1].to(device)

为什么我没有注意到相比 CPU 的大规模加速？因为你的网络确实很小。

练习： 尝试增加网络的宽度（第一个 nn.Conv2d 的参数 2，和第二个 nn.Conv2d 的参数 1——它们需要是相同的数字），看看你能获得什么样的加速。

目标达成：

在高层次上理解 PyTorch 的 Tensor 库和神经网络。
训练一个小型神经网络来进行图像分类

在多个 GPU 上训练¶

如果你想使用所有的 GPU 获得更大的加速，请查看可选：数据并行化。

接下来去哪儿？¶

del dataiter

**脚本总运行时间：**（6 分钟 19.055 秒）

画廊由 Sphinx-Gallery 生成
